PROJECT INTERI-GREDIENT 2&3

Perspective render with human figurines included

I added in human figurines so that i can get a rough gauge of how tall the people will be as compared to the stands and the space.

Perspective render of the retail area within the store

Half of the overall view of the gallery/retail space within the store. I will try doing the other portion of the store when i have the time.

Perspective render of front of the shop

For the front of the shop, i wanted to do something simple so i decided to install shelves to the wall and then place the aroma diffuser reeds on top of them. A spotlight will then be shined onto the product.

Perspective render of massage room

This is the perspective view of my massage rooms. There will be a massage bed right in the middle of the room. Shelvings and cuboards will be found in the room for the storage of oils. As the lighting and choice of material is not ideal in this image, i will re-render them when i have the time.

Rendered Floorplan of first storey 1

This is the rendered floorplan of the first storey. The main materials which i will be using here shall be concrete, tiles and different shades of oak wood. The entire first floor is a gallery where my customers can move around the space freely to experience the oils. This means that they will not be restricted into moving in a single direction. A workshop has also been integrated.

Rendered Floorplan of first storey 1.2

Unlike the previously shown floorplan, i decided to include the greeneries surrounding the store.

Rendered Floorplan of second storey 1

When the customers come up to the second floor, there will be a cafe where they can have some light pastries. They can then wait at the waiting area once they are done having a light snack. One of the workers will be situated behind the desk to serve as ushers. The customers are guided to the shower rooms and the massage rooms. Once they are done with the massages, the customers can leave via the curved staircase.

Rendered Floorplan of second storey 1.2

Unlike the previously shown floorplan, i decided to include the greeneries surrounding the store.

Rendered Section A of store

This is the first section view of the store.

Rendered Section B of store

This is the second section view of the store.

Rendered Elevation of Shop front

This is the elevation of the shop front. I will not change the exterior face of the building but i will be adding in the logo and slogan of the store.

A0 board for printing 2 (updated version

This is the A0 board which i handed up for my submission.

Sketch 1

These are sketches of how some of the spaces will look like.

Sketch 2

These are sketches of how some of the spaces will look like.

IDS 2

CONTINUATION

OF THIS PROJECT

This is the final stage of the project where almost all of my ideas are finalised and improved from my previous design. After receiving the comments given by the tutors after the last crit, I realised my problem so during the holidays, I went back and thought through as to what exactly do I want to portray to the customers.

I finally decided that I want the interior to have a few curves as I would like the space to feel soothing and comfortable. As compared to curves, angles on the other hand will probably not be able to provide the comfort which I seek for the store. I even integrated an element of my shop front into the store which is to hang smaller sized aromatherapy diffuser necklaces within the store. The necklaces will then be dripped with the aromatherapy oils and customers will be able to have a whiff of the scent by holding the necklaces up to their noses. A workshop can also be found within the store. The workers will be in their to make the oils while customers will be able to watch them from behind a glass wall. The workshop is only accessible for the workers as it is considered to be rather dangerous so it would be better if it is not open to the public.

The first storey shall be a gallery where the history, fun facts and health-related syndromes and cure will be displayed.

The second storey will be where the café, massage rooms and shower rooms will be located at.

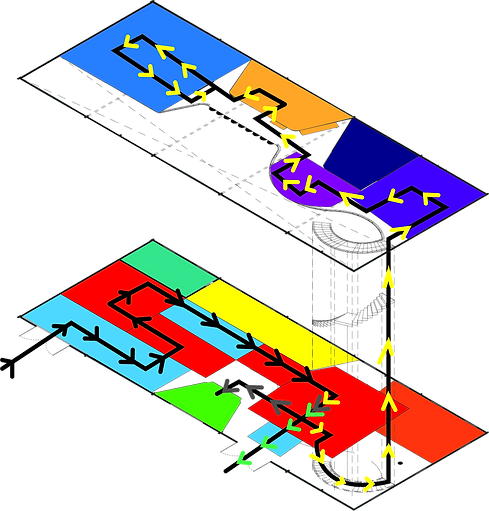

ZONING AND

SCHEDULE OF ACCOMODATION

1st STOREY

2nd STOREY

PNG transparent for schedule of accomoda

ZONE

Displays

Experience areas

Storage rooms

Workshop

Washroom

Cashier

Cafe

Waiting area

Office for workers

Shower rooms

Massage rooms

SQ M

57.75

123.41

16.97

35.87

19.30

14.62

36.36

12.13

17.99

26.33

74.75 MATERIALS USED

IN THIS PROJECT

natural-oak-wood-finish-trafficmaster-sh

4"+Solid+White+Oak+Hardwood+Flooring+in+

100340926_alaskan-white-porcelain-tile_m

AN EXAMPLE OF THE TYPE OF

INFORMATION BEING DISPLAYED

WAYS TO DIFFUSE THE SCENT OF THE OIL INTO SURROUNDING

Humidifier
Reeds
Essential oil necklace
Paper

COMMENTS FROM TUTORS

Its an improvement from the previous design but some of the details within the store should be taken note of such as the odd shape of the second floor's floor slab. Rather than having another changing area within the massage rooms, the customers can just change in the rooms directly. The ceiling can probably use other materials or paint it white as it looks weird as of current with the yellowish hue.
